Specifications A |
Specifications B |
Specifications C |
|
|
|
|
|
| Type |

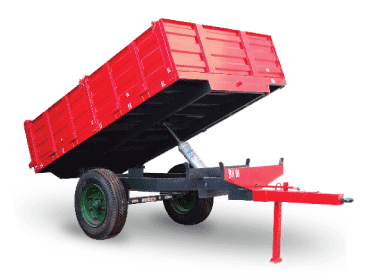

Hydraulic Tipping |
Hydraulic Tipping |
Hydraulic Tipping |
|
|
| Capacity |
4-Ton |
5-Ton |
8-10 Ton |
|
|
| Vessel Size |
10' x 6.5' x 2' |
11' x 6.5' x 2' |
12' x 7' x 2.5 |
|
|
|
|
|
|
|
|
|
| Side Wall |
MS Sheet SWG 12 |
|
|
|
|
|
|
|
| Lower Channel |
8' x 3' |
8' x 3' |
10' x 3' |
|
|
| Upper Channel |
6' x 3' |
6' x 3' |
6' x 3' |
|
|
|
|
|
|
|
|
|
|
|
| Wall Thickness |
3/8" |
3/8" |
3/8" |
|
|
|
|
|
|
|
|
| Quantity |
8.25-20 |
8.25-20 |
8.25-20 |
|
|
| Tipping Device |
Double acting heavy duty locally made Ram with mechanical linkage |
|
|
|
|
|
| Maximum Lift Time |
10 Seconds at 1,500-1,789 rpm of Tractor Engine to its ful height in empty condition |
|
|
|
|
| Spool valve |
Imported from USA, Italy or UK, minimum Rod Dia, 20mm |
|
|
| Selector Valve |
Imported from USA, Italy or UK, minimum Rod Dia, 20mm |
|
|
| Hud. Hoses |
Imported from above Countries, the Crimping and Hoses should bear a pressure of 4000psi. There shoulud be no join between two connections. |
|
|
Quick Attachment Coupier Set |
Imported |
|
|
