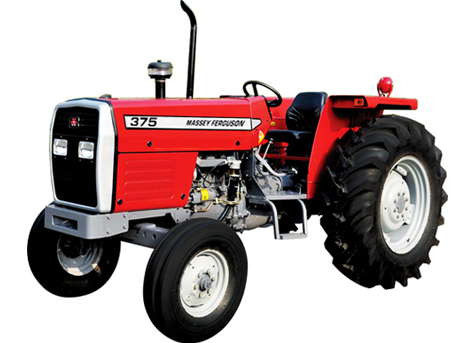

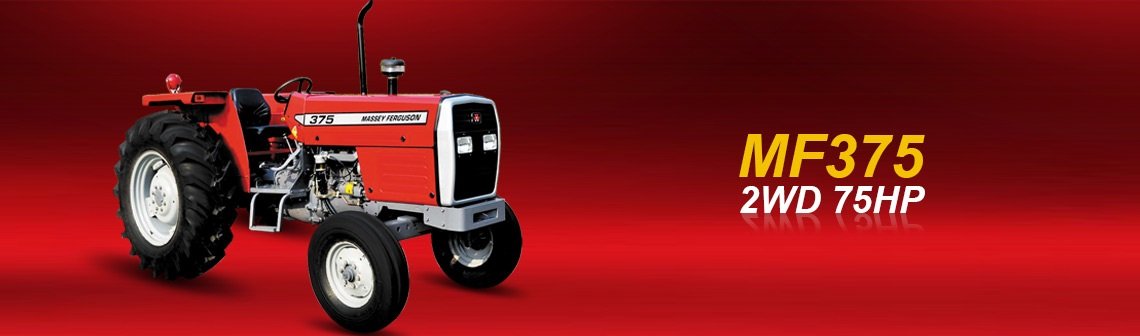

New Massey Ferguson 375 Tractors for Sale in Pakistan
Elevate Your Farming Game with the New Massey Ferguson 375 75hp 2WD & 4WD Tractor - Discover Its Incredible Features!
• Hydrostatic Power Steering for Comfortable Driving
• Hydraulically Actuated, Oil-Immersed Multi-Disc Brake System with Pendant Paddle
• Robust Straddle Rear Axle with Epicyclic Reduction Unit
• Heavy Duty Front Axle & Support
• Fuel Efficient, 4.248 High Performance Engine
• Greater Pulling Power
• Higher PTO Power
• Spring Suspension Delux Seat
• Easy Accessibility to Service Points
• Spacious Operator's Area
Updated Technical Specifications for the Massey Ferguson 375 2WD Tractor.
Performance
Engine Power at 2,000 rpm>
75 (B.S) hp
Torque at 1,400 rpm
290 Nm
PTO Power at Rated
69.5 hp
Engine Speed
PTO Power at 540 rpm
63.0 hp
*Certified at BS AU 141a
Electrics
Voltage
12V, Negative Earth
Battery
110 Ah
Starter
2.8 kW
Alternator
45 Amp
Transmission
Type
Sliding Spur
Number of Gears
8 Forward, 2 Reverse
Road Speed at 2,250
Engine RPM with 16.9/14x30 rear tyres
Gear
Speed (km/hr)
Forward 1 (First Low)
2.3
Forward 2
3.4
Forward 3
4.7
Forward 4
6.3
Forward 5 (First High)
9.3
Forward 6
13.6
Forward 7
18.6
Forward 8
25.0
Reverse 1 (Low)
3.2
Reverse 2 (High)
12.7
Hydraulics
Functions
Draft Control, Position Control Response Control, Constant Pumping
Pump Type
Reciprocating, Ferguson Pump
Oil Flow
16.7 ltr/min
Pressure
21.2 Mpa at normal operating temperature
Lift Capacity with Lower
2,145 kg With Cat, I & II Interchangeable Balls
Links Horizontal
Rear Axle & Brakes
Axle Type
Straddle with apicyclic redution unit
Brake Type
Oil immersed, Multi-disc
Brake Pedal
Pendant
Braking Area
1.774 sq. cm
Brake Actuation
Hydraulic
Parking Brake
Hand Lever Operated
Tyres
Front
7.50 - 16 (6PR)
Rear
16.9 / 14 - 30 (6PR)
Clutch
Type
Dual
Diameter
305 x 254 mm
Lining Material
Cerametallic
Front Axle
Type
Heavy Duty Box Section, Adjustable
Steering
Type
Hydrostatic
Track Adjustment
Front Axle
1,271 - 1,881 mm
Rear Axle
1,423 - 2,134 mm
Engine
Make / Type
Diesel / 4.248
No. of Cylinders
4
Injection
Direct
Bore
101 mm
Stroke
127 mm
Capacity (litres)
4.07 L
Compression Ratio
16:1
Compression Ratio
16.5:1
Aspiration
Natural
Starting Aid
Thermostart
Throttle Control
Hand and Feet
Cooling
Water
Air Cleaner Type
Oil Bath
Air Pre-Cleaner
Oil Bath
Fuel Filter
Dual, High Capacity
Exhaust
Vertical Muffler under Bonnet
Note: This is a premium heavy duty engine with tuffrided cranckshaft for longer life in adverse conditions.
Power Take Off
Type
Live
Engine Speed at 540 pto rpm
1,789 rpm
Shaft Diameter
35mm
No. of Splines
6
Instrumentation
Guages
Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature
Warning Lights
Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights & Auxiliary Socket
Weight & Dimensions
Weight
Gross Weight
2,355 kg
Dimensions
Wheel Base
2,170 mm
Overall Length
3,670 mm
Overall Width (Min)
1,970 mm
Height
Over Exhaust
2,485 mm
Over Steering Wheel
1,730 mm
Turning Circle
With Brakes
7,260 mm
Without Brakes
8,095 mm
Ground Clearance
Under Gear Box
465 mm
Capacities
Fuel Tank
108.0L
Engine Pump
7.5L
Cooling System
15.2L
Hydraulic System
36.0L
Hydrostatic Steering Reservior
2.0L
Oil Bath Air-Cleaner
0.7L
Brake Oil
0.25L
Standard Equipment
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual
Optional Equipment
Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook
