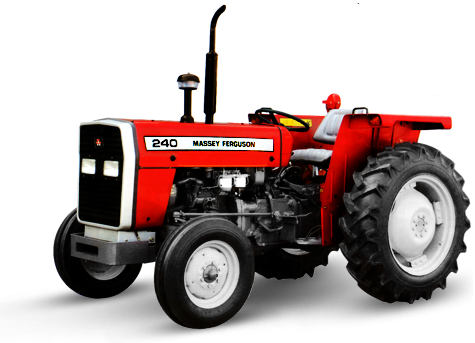

New Massey Ferguson 240 Tractors for Sale in Pakistan!



Massey Ferguson MF 240 Tractors for sale





Elevate Your Farming Game with the New Massey Ferguson 240 Tractor - Discover Its Incredible Features!



•  Most Economical in 50HP Range

•  Rugged, Meneuverable and Compact

•  Easy Accessibility to Service Point

•  Ideal, Versatile, All Round Tractor

•  Spring Suspension Delux Seat

•  Availibility of Parts & Service Facilities


Updated Technical Specifications for the Massey Ferguson 240 Tractor.



Performance
Max. Engine Power at 2,250 rpm 50 (B.S) hp
Maximum Torque at 1,400 rpm 172Nm
Maximum PTO Power at Rated 44hp
Engine Speed
*Certified at BS AU 141a 1971 **Manufacturer’s Estimate
Electrics
Voltage 12V, Negative Earth
Battery 110 Ah
Starter 2.2 kW
Alternator 32 Amp
Transmission
Type Sliding Spur
Number of Gears 8 Forward, 2 Reverse
Road Speed at 2,250 Engine RPM with 12.4/11-28 Tyres
Gear Speed (km/hr)
Forward 1 (First Low) 2.7
Forward 2 3.9
Forward 3 5.3
Forward 4 7.2
Forward 5 (First High) 10.6
Forward 6 15.4
Forward 7 21.3
Forward 8 28.6
Reverse 1 (Low) 3.6
Reverse 2 (High) 14.5
Hydraulics
Functions Draft Control, Position Control
Pump Type Response Control, Constant Pumping
Maximum Oil Flow Reciprocating Ferguson Pump
Maximum Pressure 16L / mix
Max. Lift Capacity with Lower 19.2 Mpa
Links Horizontal Max. Lift Capacity with Lower 1,415 kg
Lower Links With Cat, I & II Interchangeable Balls
Rear Axle & Brakes
Brake Type Out Board Drum Brakes
Actuation Mechanical, Independant or Locked Together, Hand Lever Operated
Parking Brake Mechanical
Different Lock "
Tyres
Front 6.00 - 16 (6PR)
Rear 12.4 / 11 - 26 (6PR)
Clutch
Type Dual Clutch
Diameter 305 x 254 mm
Front Axle
Type Box Section, Adjustable
Diameter 305 x 254 mm
Steering
Steering Manual
Track Adjustment
Front Axle 1,245 - 1,854 mm
Rear Axle 1,321 - 1,930 mm
Engine
Type Diesel AD 3.1524
No. of Cylinders 3
Injection Direct
Bore 91.4mm
Stroke 127.0mm
Capacity (litres) 2.5 L
Compression Ratio 16.5:1
Aspiratio Natural
Starting Aid Thermostart
Throttle Control Hand and Feet
Cooling Water
Air Cleaner Type Oil Bath
Air Pre-Cleaner Over Bonnet, Air Swirl
Fuel Filter Dual, High Capacity
Exhaust 5Vertical
Power Take Off
Type Live
Engine Speed at 540 pto rpm 1,789 rpm
Shaft Diameter 35mm
No. of Splines 6
Instrumentation
Guages echnometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature
Warning Lights Direction Indicators, Battery Charge, Headlight Main Beam, Low Engine Oil, Pressure & Brake Lights
Hydraulics
Functions Draft Control, Position Control
Pump Type Response Control, Constant Pumping
Maximum Oil Flow Reciprocating Ferguson Pump
Maximum Pressure 16L / mix
Max. Lift Capacity with Lower 19.2 Mpa
Links Horizontal Max. Lift Capacity with Lower 1,415 kg
Lower Links With Cat, I & II Interchangeable Balls
Weight & Dimensions
Weight
Gross Weight 1,650 kg
Dimensions
Wheel Base 1,892 mm
Overall Length 3,260 mm
Overall Width (Min) 1,651 mm
Height
Over Exhaust 2,145 mm
Over Steering Wheel 1,410 mm
Turning Circle
With Brakes 5,560 mm
Without Brakes 6,200 mm
Ground Clearance
Under Gear Box 338 mm
Capacities
Fuel Tank 47.5L
Engine Pump 6.8L
Cooling System 10.2L
Hydraulic System 36.0L
Steering Box 0.9L
Oil Bath Air-Cleaner 0.5L
Standard Equipment
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual
Optional Equipment
Front End Weights, Pintle Hook, Sun Canopy, Swinging Draw Bar
