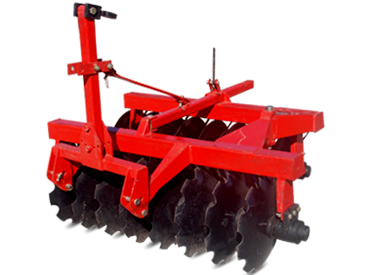

Offset Disc Harrow

Offset Disc Harrow





The Offset Disc Harrow has a heavier weight per Disc and thus have the penetration ability to break down large clods normally left after disc ploughing or Chisel Ploughing in hard grounds.It is a robust construction, used as mounted or trailed and ideal for chopping and mixing of stubbles and crop residues in the soils.

The disc Harrow prepares the seed-bed leaving the soil in granular form which is the most suitable structure for plant growth. It aerates the soil, helps to conserve moisture for longer periods and eradicates weeds.

In sandy loam soils, this implement can also be used as primary tillage implement. the depth of ploughing is regulated simply by manipulating the offset angles of the gauges. By removing simply a pin, the mounted position can be converted into trailed position and vice versa.


Specifications
Models OTI-03 OTI-03 OTI-03
No. of Discs 14 Discs 16 Discs 18, 20, 22, 24
Longitudinal Clearance 522 mm
Disc Size 61cm (24") 61cm (24")
Weight 590 kgs 685 kgs
Working Width 145cm (57") 167.5cm (66")
Tractor Compatibility 50 hp 60-85 hp
